Hearing infrasound is not a matter of "putting up a microphone". The signals are weak, the background is enormous, and the main enemy is the wind. Over the decades a coherent technology has taken shape, and its core is the international network created to monitor nuclear tests.

A network that listens to the whole planet

The Comprehensive Nuclear-Test-Ban Treaty Organization (CTBTO) has deployed the International Monitoring System (IMS) — dozens of infrasound stations around the world, operating continuously.1 It was this system that caught the Chelyabinsk meteor and the wave from Tonga,2 and earlier still the infrasound from the 2004 Sumatra tsunami.3 Its direct purpose is to catch nuclear explosions: the infrasound of North Korea's 2017 underground test was recorded by a station 400 km away.6 And today infrasound is routinely used to track volcanoes around the world.7 Operational infrasonic early-warning systems already exist for explosive volcanic eruptions (Ripepe et al., 2018)12 — for example, the dense seismo-acoustic network that warned of the 2019 paroxysmal Stromboli eruptions (Ripepe et al., 2021).13

The microbarometer and the array

The heart of a station is the microbarometer, an instrument that measures minute pressure fluctuations (fractions of a pascal). A single sensor says little, so they are combined into an array: several instruments a few hundred metres apart. By comparing the fractions of a second by which a wave arrives at different sensors, one can work out where it came from and at what speed — and so tell a real event from random noise.

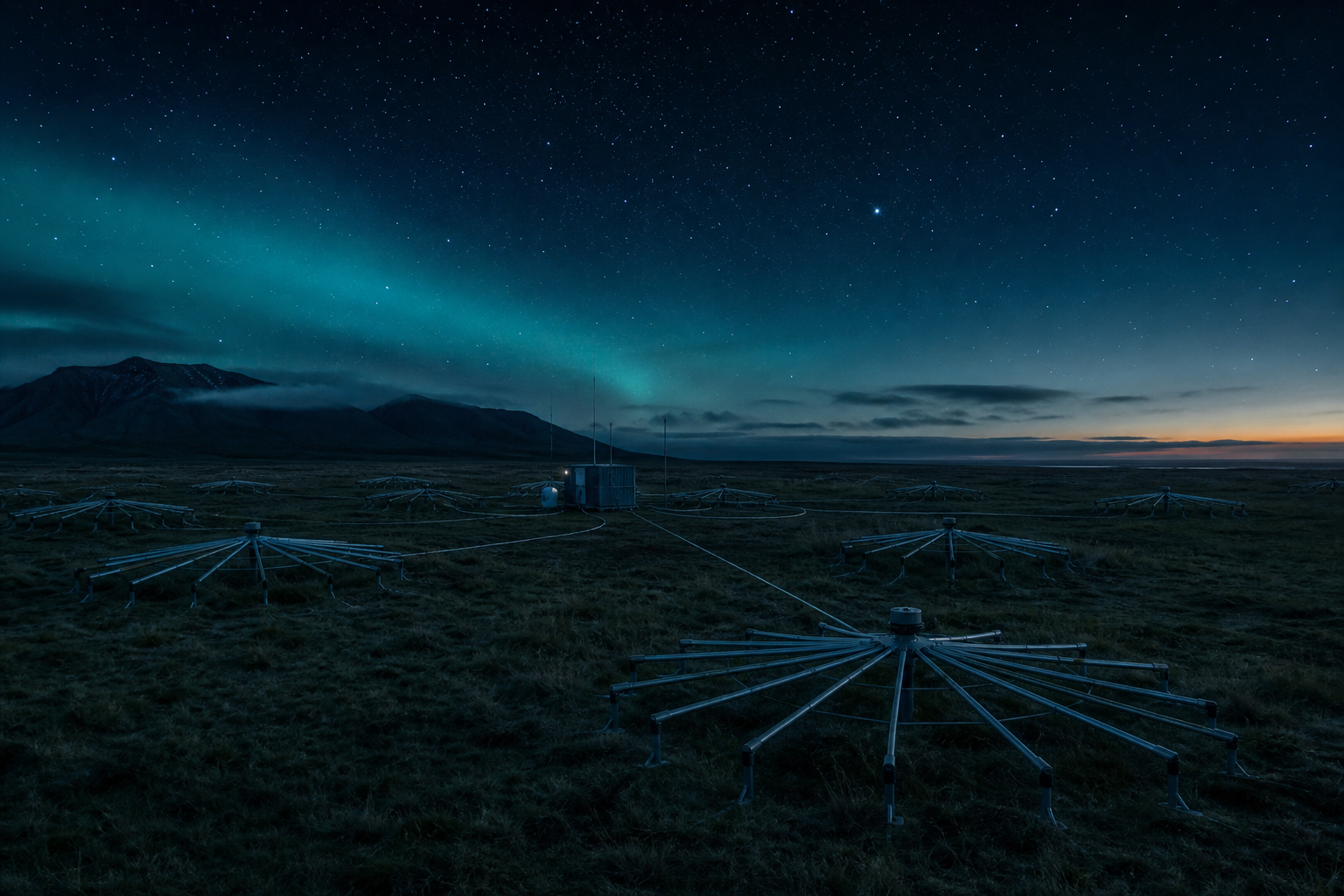

An array of infrasound sensors on the terrain — Several spaced-out sensors form an "array" that determines the direction to the source.

The main enemy is the wind

Wind turbulence creates false "pressure noise" right at the sensor. To suppress it, each instrument is fitted with pipe arrays (wind-noise rosettes): they average the pressure over an area and damp local gusts, leaving the coherent wave. This is one of the key pieces of field-infrasound know-how: measurements show that an 18 m diameter rosette reduces wind noise by 15–20 dB.5

Signal versus weather noise

Wind is not the only deception. A passing atmospheric front produces a coherent pressure change across many stations — exactly what the algorithm is looking for, so telling geophysical infrasound from weather noise is a real scientific problem. It is not solved "by eye": the array-correlation method PMCC checks whether the delays between sensors are consistent with a single plane wave, and discards what is not.8 Large analyses of IMS data show how, in practice, to distinguish incoherent wind noise from "spurious" coherent signals and how to compute the network's real detection capability.9 Modern arrays increasingly use machine learning and deep learning to categorize infrasound signals (Bishop et al., 2022).10

This already works in practice

Infrasound arrays of 4–5 sensors operationally catch avalanches several kilometres away in any weather.4
The same methods are applied to volcanoes, bolides and explosion monitoring.
Correlation algorithms (for example, PMCC) automatically find a signal in a continuous data stream.8
An earthquake was "heard" for the first time from a stratospheric balloon by its acoustic signature (Brissaud et al., 2021) — a prototype for networks of balloon sensors.11

Why this matters for HERD

Big science has proven the principle on expensive stations. Our task is to carry the same ideas (arrays, wind filtering, correlation) over to cheap nodes and win by numbers. That's what the next article is about →
